M25484R-2xN
HRB

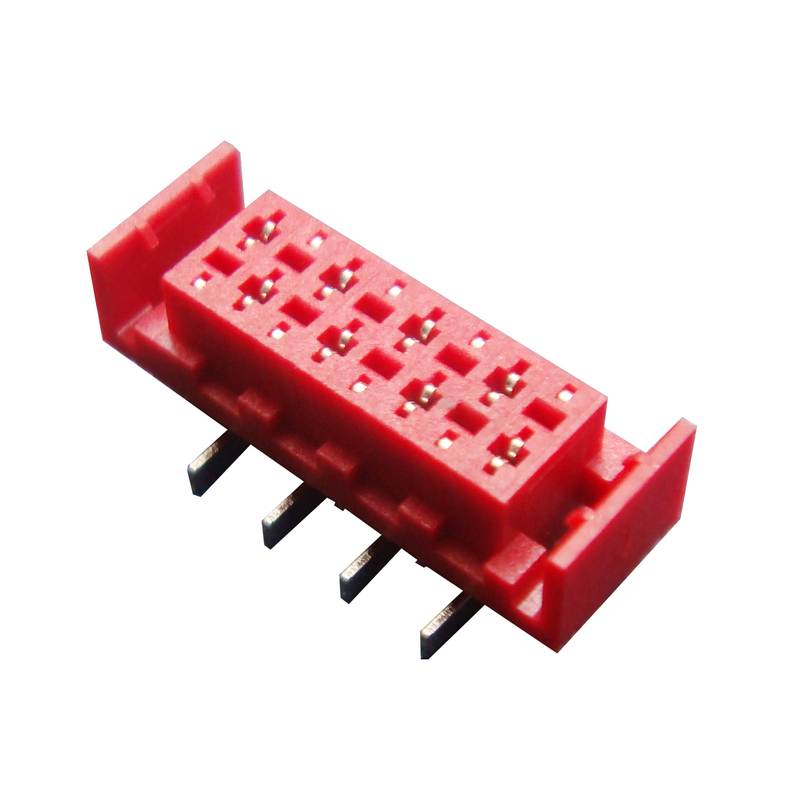

Cabecera de paso de 1,27 mm, con pestillo de bloqueo, vertical, SMT, doble fila, de 4 a 24 circuitos
1A 100V AC DC
Vivienda: PA46 UL94V-0
Terminal: bronce fosforoso
| Parte No. | Dimensions | Parte No. | Dimensions | ||||||
| TYP UL94V-0 | Cir | Dim: A | Dim: B | Dim: C | TYP UL94V-0 | Cir | Dim: A | Dim: B | Dim: C |
| M25484R-2 × 2 | 4 | 9.70 | 3.81 | 5.60 | M25484R-2 × 8 | 16 | 24.94 | 19.05 | 20.84 |
| M25484R-2 × 3 | 6 | 12.24 | 6.35 | 8.14 | M25484R-2 × 9 | 18 | 27.48 | 21.59 | 23.38 |
| M25484R-2 × 4 | 8 | 14.78 | 8.89 | 10.68 | M25484R-2 × 10 | 20 | 30.02 | 24.13 | 25.92 |
| M25484R-2 × 5 | 10 | 17.32 | 11.43 | 13.22 | M25484R-2 × 11 | 22 | 32.56 | 26.67 | 28.46 |
| M25484R-2 × 6 | 12 | 19.86 | 13.97 | 15.76 | M25484R-2 × 12 | 24 | 35.10 | 29.21 | 31.00 |
| M25484R-2 × 7 | 14 | 22.40 | 16.51 | 18.30 | |||||
Cabecera de paso de 1,27 mm, con pestillo de bloqueo, vertical, SMT, doble fila, de 4 a 24 circuitos
1A 100V AC DC
Vivienda: PA46 UL94V-0
Terminal: bronce fosforoso
| Parte No. | Dimensions | Parte No. | Dimensions | ||||||
| TYP UL94V-0 | Cir | Dim: A | Dim: B | Dim: C | TYP UL94V-0 | Cir | Dim: A | Dim: B | Dim: C |
| M25484R-2 × 2 | 4 | 9.70 | 3.81 | 5.60 | M25484R-2 × 8 | 16 | 24.94 | 19.05 | 20.84 |
| M25484R-2 × 3 | 6 | 12.24 | 6.35 | 8.14 | M25484R-2 × 9 | 18 | 27.48 | 21.59 | 23.38 |
| M25484R-2 × 4 | 8 | 14.78 | 8.89 | 10.68 | M25484R-2 × 10 | 20 | 30.02 | 24.13 | 25.92 |
| M25484R-2 × 5 | 10 | 17.32 | 11.43 | 13.22 | M25484R-2 × 11 | 22 | 32.56 | 26.67 | 28.46 |
| M25484R-2 × 6 | 12 | 19.86 | 13.97 | 15.76 | M25484R-2 × 12 | 24 | 35.10 | 29.21 | 31.00 |
| M25484R-2 × 7 | 14 | 22.40 | 16.51 | 18.30 | |||||
